Stereotactic Surgery Navigation System

Precision-led planning.Real-time guidance.Confident clinical navigation.

RETINA-Nova brings intelligent navigation and digital imaging together to support precise, real-time guidance during surgical procedures.

Minimally invasive support
Real-time optical tracking
CT/MRI fusion
High instrument compatibility

RETINA-Nova stereotactic surgery navigation system

The System in Motion

See RETINA-Nova in Action

Experience how RETINA-Nova connects surgical imaging, planning and real-time navigation within a precise, intuitive clinical workflow.

Real-time optical tracking
CT/MRI fusion
Surgical planning
Image-guided navigation

Navigate with confidence

A unified platform for image-guided surgery

RETINA-Nova brings intelligent navigation and digital imaging together to provide surgeons with precise, real-time guidance during procedures. Compatible with a wide range of instruments already used in the operating theatre, it integrates into existing surgical workflows and supports minimally invasive approaches.

Real-time optical tracking

Monitor instrument position, trajectory, depth and distance relative to the planned target during the procedure.

CT and MRI fusion

Fuse CT and MRI datasets to visualise soft and hard tissue together within a unified pre-operative planning environment.

Instrument compatibility

Intuitive clinical workflow

A clear step-by-step process supports patient registration, instrument registration and real-time navigation.

PrecisionReal-time guidanceCT / MRI fusionImage-guidedOptical trackingMinimally invasivePrecisionReal-time guidanceCT / MRI fusionImage-guidedOptical trackingMinimally invasive

Clinical applications

Supporting a broad range of surgical disciplines

RETINA-Nova supports image-guided procedures across multiple specialties and stages of the surgical workflow.

Clinical use of the RETINA-Nova navigation system

Selected

Neurosurgery

From imaging to real-time navigation

A clear three-step surgical workflow

Imaging and Planning

Immersive Product Explorer

Move through the workflow to explore depth

System elements

Three connected components, one navigation platform

Tracking Unit

Dual-camera optical tracking
Infrared illumination
Dual lasers
Spatial target localisation

PC Cart and Display

Integrated computer
High-resolution display
Touch-enabled system interaction

Navigation Software

Planning
Fusion
Segmentation
Guidance
Mirroring
Registration tools

Planning and execution

Clinical planning tools built around the anatomy

RETINA-Nova brings together fusion, segmentation, delineation, mirroring and trajectory planning to help the clinical team visualise anatomy, define targets and prepare the procedure with precision, then guide execution in real time.

Fusion

Combine CT and MRI datasets to view soft and hard tissue together in a unified planning environment.

Segmentation

Colour-code targets and anatomical structures to support clear visual planning and object targeting.

Nerve & Vessel Delineation

Trace critical anatomy and monitor the distance between the instrument and defined structures.

Guidance Mode

View real-time position, depth and angle against the planned path and target during execution.

Plate Positioning

Create a 3D model from pre-operative imaging and virtually position or manipulate plates before execution.

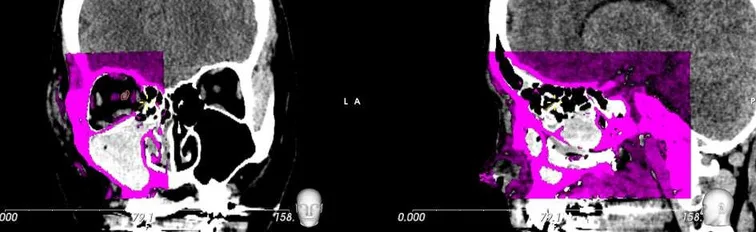

Mirroring

Mirror healthy anatomy into the affected region to support reconstruction planning in maxillofacial workflows.

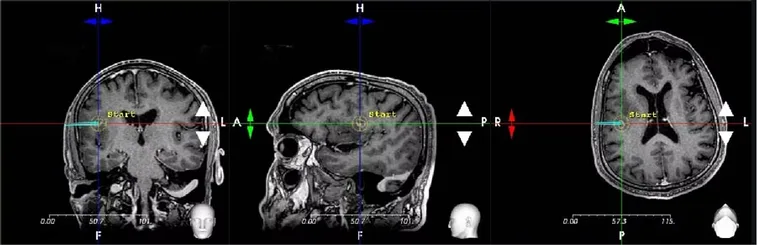

Surgical Path Planning

Define targets and trajectories during planning, then follow the selected path with real-time visual feedback.

Tracking and registration technology

Optical tracking designed for spatial precision

Real-Time Optical Tracking

A cylindrical marker and optical tracking workflow support precise, real-time localisation of instruments in space.

Scan-Assisted Registration

Scanner-assisted facial registration may be used for workflows that benefit from surface capture.

360 Marker Visibility

The cylindrical marker geometry is designed to provide visibility from different viewing angles using passive reflected light.

Clinical and operational value

Designed around the needs of surgeons, hospitals and patients

For Surgeons

Real-time position, depth and trajectory feedback
Planning tools for targets, paths and critical anatomy
Compatibility with a broad range of instruments
Clear visual guidance throughout the workflow

For Hospitals

Supports integration with established operating-theatre workflows
May reduce the need to replace compatible instruments
Pre-operative planning may support efficient use of theatre time and resources
Modular configurations for different facility needs

For Patients

Supports minimally invasive approaches
Designed to help avoid unnecessary tissue disruption
Risk-aware planning around defined critical anatomy
Navigation support for informed surgical execution

noteClinical outcomes depend on the procedure, patient, clinical judgement and correct use of the system.

Real-time

Instrument tracking and guidance

2K display

2560 x 1440 system monitor

Flexible

Point-based or scan-assisted registration

Connected

CT/MRI fusion and planning environment

Instrument ecosystem

An instrument set configured for the procedure

RETINA-Nova supports image-guided procedures across neurosurgery, ENT and maxillofacial surgery. Procedure-specific instrument sets are supplied in sterilisable stainless-steel containers for handling, preparation and storage.

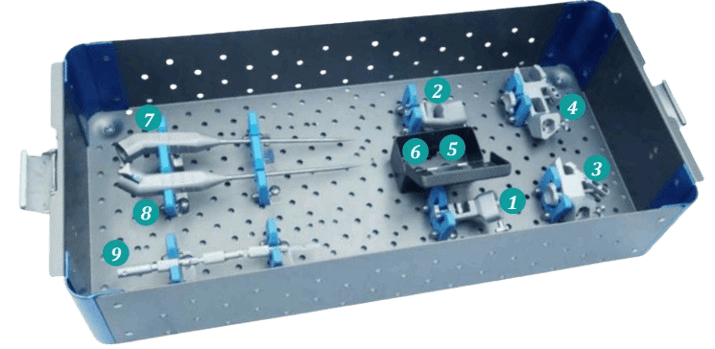

Standard Neurosurgical Instrument Set

1Adapter 0106
2Adapter 0312
3Adapter 0616
4Adapter 1625
5Screw
6O-ring
7Pre-operative probe
8Intra-operative probe
9Multi-angle holder

Illustrative instrument tray. Final contents depend on the selected clinical configuration.

Components and consumables

A complete accessory ecosystem

Laser Scanner - NOVA only

Supports scan-assisted facial registration workflows.

Jaw Attachment Set

Diverse attachment options support different maxillofacial and registration needs.

Single-use consumables

Instrument register

Reflective positioner

Reflective attachment

Occlusal guide holder

Pattern resin

Single-use items must not be reprocessed or reused. Follow the current Instructions for Use and the hospital's infection-control protocols.

Built for operating theatre integration

Technical specifications

PC cart size: 70 cm (L) x 65 cm (W) x 180 cm (H)
Tracking unit cart size: 58 cm (L) x 50 cm (W) x 190 cm (H)
Tracking unit size: 73 cm (L) x 22 cm (W) x 10 cm (H)
Monitor: Display resolution 2560 x 1440, 2K
Power supply: 100-240 VAC, 50/60 Hz
Operating temperature: 5C to 40C
Environmental storage: -10C to 50C

Configuration, accessories, functions and performance should be verified against the current manufacturer documentation and intended clinical use. Specifications are subject to change without notice. Confirm the current configuration and specification sheet before procurement.

India partnership

Advanced surgical navigation for Indian healthcare

RETINA-Nova is an EPED product. Through its strategic partnership with EPED, TransforMed Arrogyam Pvt. Ltd. holds exclusive rights to market and sell RETINA-Nova in India, with a commitment to making advanced surgical technology more affordable and accessible across the country.

Available in India through TransforMed Arrogyam Pvt. Ltd.
